Detailed introduction

---

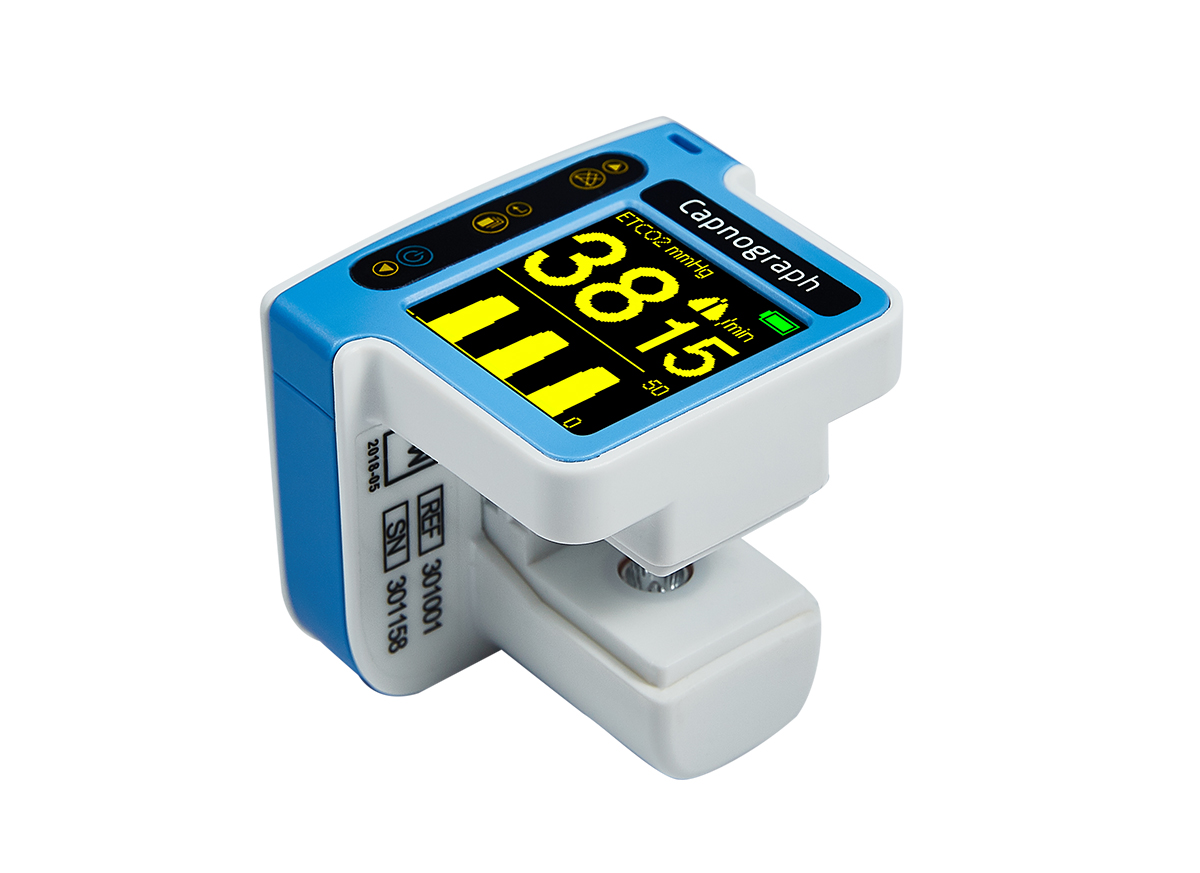

Portable Real-time Capnography

Application
Emergency medicine,operating room(OR), intensive care unit(ICU), long-term acute care, monitoring of endotracheal tube placement, etc.

Technical Specification
CO₂ Range: 0-99 mm Hg   0-9.9 kPa

CO₂ Accuracy:
0 –40 ±2mmHg     41 – 99 ±6% of reading
0–5.3 ±0.3 kPa      5.4-9.9 ±6% of reading

RR Range: 3-150bpm
RR Accuracy: ±1bpm

Feature
> Fast Response - short warm up time and real-time EtCO2 waveform displayed in 15 seconds.
> Audible and visual alarm system - for No Breath, Check adapter Battery Low,EtCO2 and RR alarm.
> Long Battery life - up to 10 hours of normal use with two AAA lithium batteries.
> Easy to use and maintain - no user routine calibration required.

Your Choice

Environmental
Operating temperature	0 to 40 ºC
Operating atmospheric pressure	70 to 120 kPa
Operating humidity	10-95%,non-condensing
Storage temperature	-20 to 70 ºC
Storage atmospheric pressure	50 to 120 kPa

Physical Characteristics
Dimensions	52×44×45 mm
Weight	66g (Alkaline)

Battery
Battery Type	2 AAA cell Alkaline or Lithium
Battery Life	6 hours (Alkaline) 10 hours (Lithium)

Display
Display	1.4 inch Color TFT
Display Parameter	ETCO2,RR,Capnogram
CO2 Unit	mmHg,kPa,% Selectable
ETCO2 Update Period	Displayed after 3 breath,updated per breath

Alarm
Alarm System	Audible and visual alarm system
Alarm information	Check adatper Apnea Battery Low ETCO2 Low ETCO2 High RR Low RR High

Others
Waterproofing	IPX33
Data output	Bluetooth(optional)
Warm up time	15s

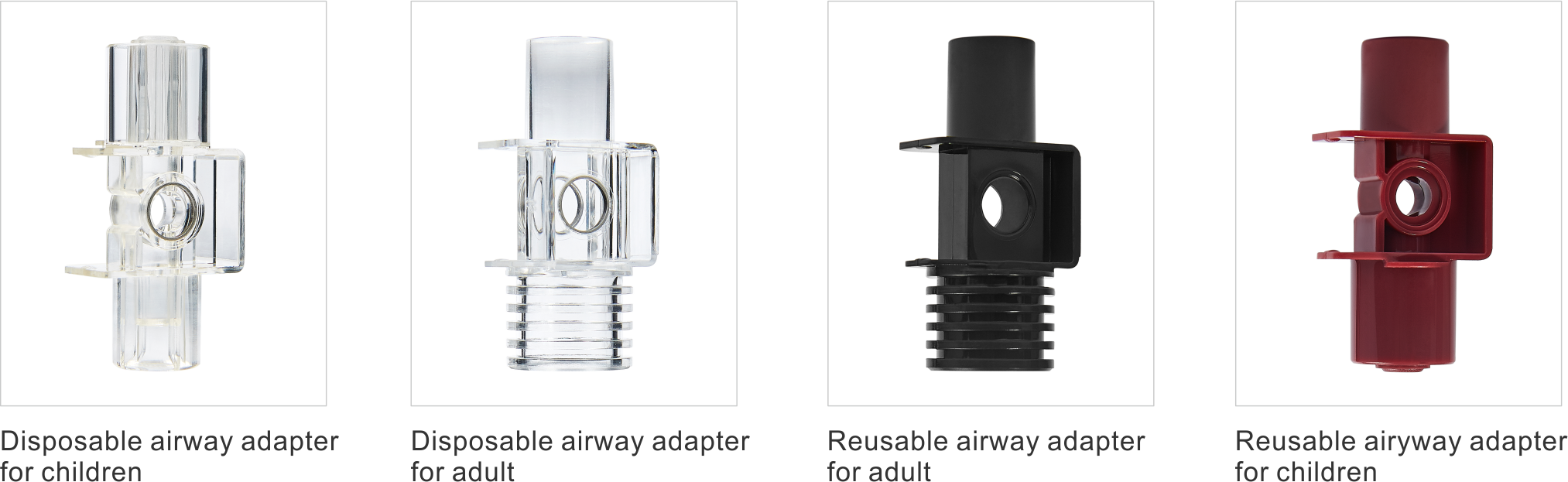

Adult Airway Adapter	Dead Space ≤ 6ml
Infant Adult Airway Adapter	Dead Space ≤ 1ml
