    Hand-held monitor

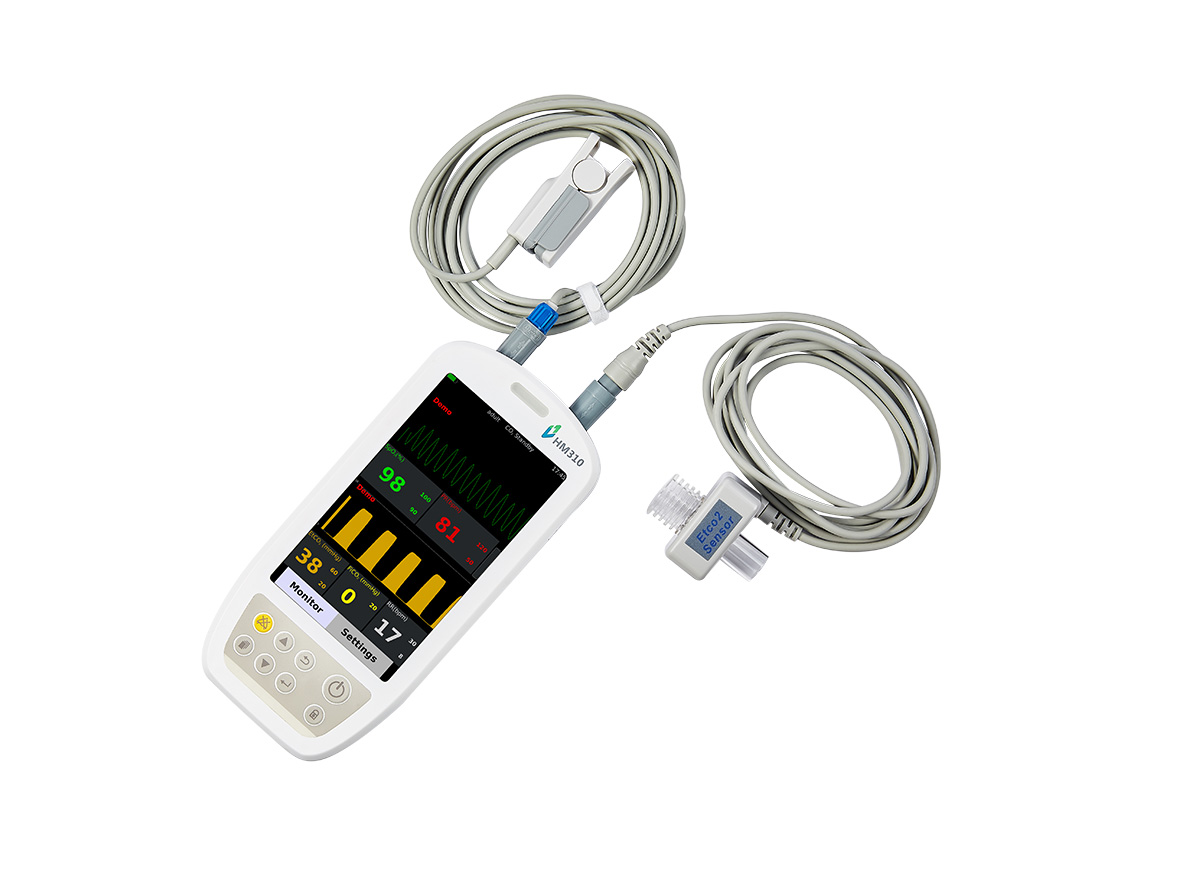

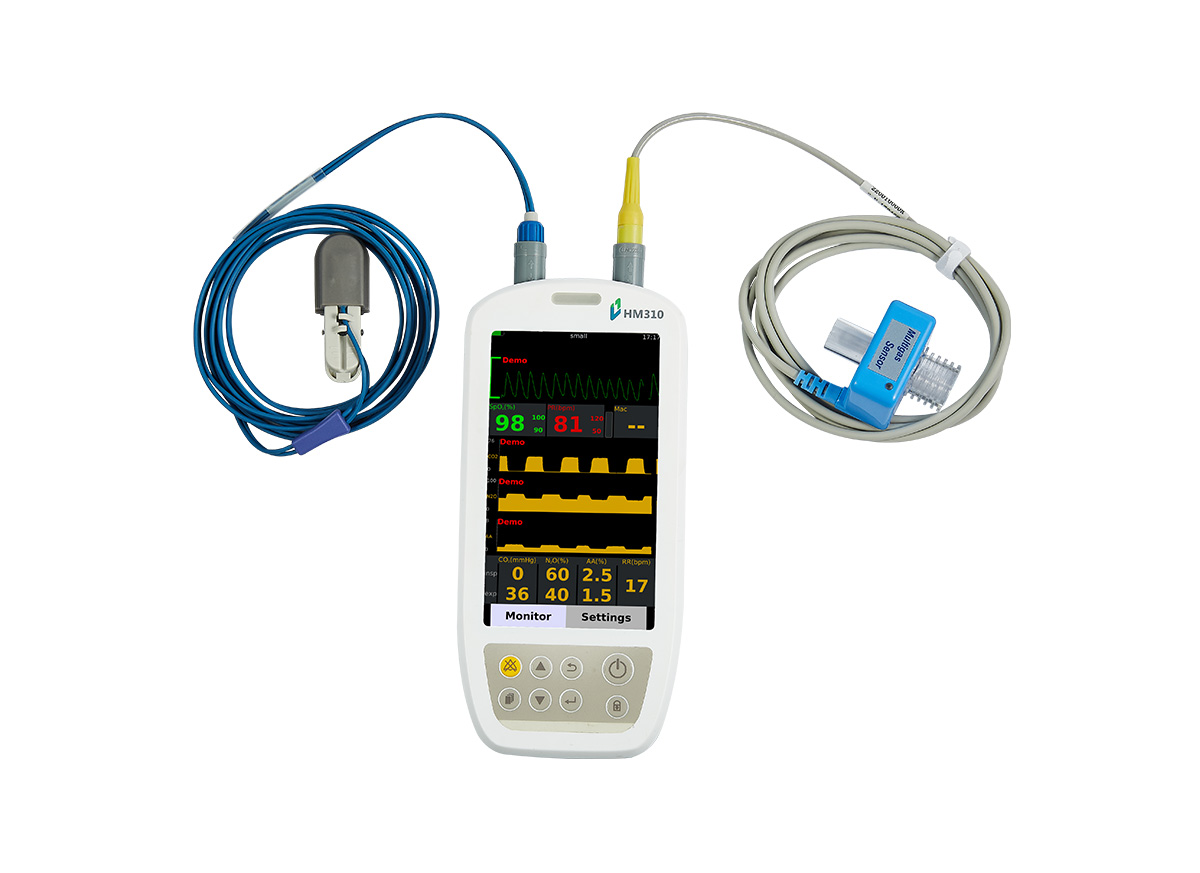

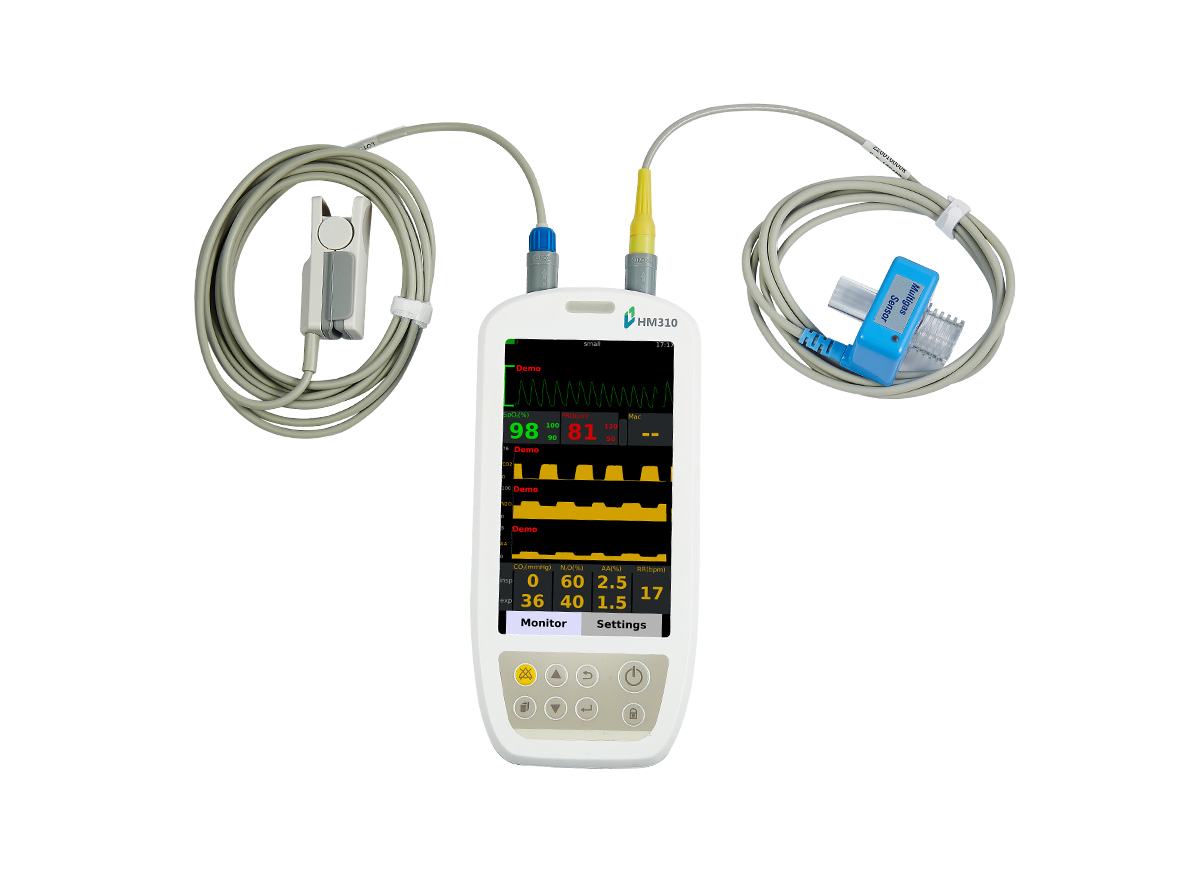

    The HM310-M hand held anesthesia machine monitor is a portable, user-friendly and compact device, measuring five anesthesia gas agents(ISO, SEV, ENF, DEF, HAL), N2O, ETCO2, FICO2, RR, SpO2 and PR in ICU, OR and emergency environment for vets.

    Detailed introduction


    Unmatched clinical performance!

    The HM310-M hand held anesthesia machine monitor is a portable, user-friendly and compact device, measuring five anesthesia gas agents(ISO, SEV, ENF, DEF, HAL), N2O, ETCO2, FICO2, RR, SpO2 and PR in ICU, OR and emergency environment for vets.

    It can be connected with mainstream sensor, sidestream sensor, multigas sensor, etc., also, we offer the capnograph engine for internal integration into monitoring system.

    Technical Specifications
    Parameters Range Accuracy
    CO2 0 -15% ±(0.2% + 5% of reading)@0-10%
    ±(0.2% + 8% of reading)@10-15%
    RR 0-150bpm ±1bpm
    SpO2 0-100% ±2%@(70 - 100%)
    N2O 0 -100 ±(2% + 3% of reading)
    Sevoflurane 0 -10% ±(0.15% + 5% of reading)@0-5%
    ±(0.3% + 10% of reading)@5-10%
    Isoflurane 0 -8% ±(0.15% + 5% of reading)@0-5%
    ±(0.3% + 5% of reading)@5-8%
    Enflurane 0 -8% ±(0.15% + 5% of reading)@0-5%
    ±(0.3% + 5% of reading)@5-8%
    Halothane 0 -8% ±(0.15% + 5% of reading)@0-5%
    ±(0.3% + 5% of reading)@5-8%
    Desflurane 0 -22% ±(0.15% + 5% of reading)@0-10%
    ±(0.3% + 10% of reading)@10-22%

    Features
    Display&resolution 720P(1280 * 720), 5.5 inch
    Parameters Displayed ETCO2, FICO2, SPO2, RR, PR, AG
    Indicators Battery status, Sound-light alarm, SpO2 pulse pitch tone
    Interface USB 2.0
    Battery life > 8h
    Dimension Weight 202mm x 95 mm x 45 mm,900g
    Power supply 90 -260V AC/5V DC, 50 - 60 Hz, 20W, built-in 8000mAh Li-ion battery

    Trend information
    Short term trend 15min/1h/6h
    Short term trend 400h

    Language
    English, Chinese

    Classification
    Product class II B
    Safety Class of protection II / Type BF – Type and degree of protection against electrical shock
    Standards EN60601-1:2006+A1:2013
    ENISO80601-2-55:2011
    ENISO80601-2-61:2011
    MDD(93/42/EEC)
