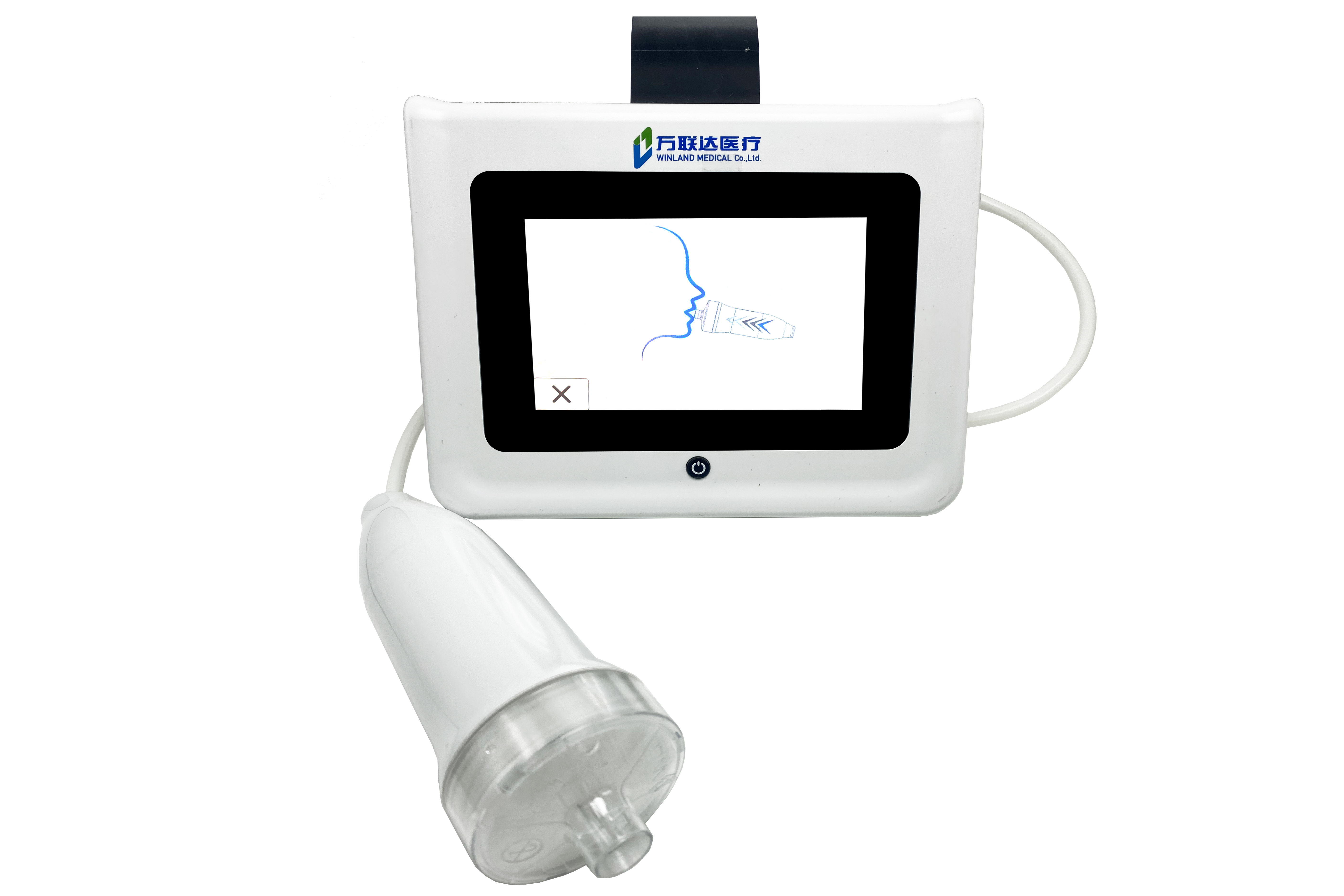

    FeNO Testing Device

    Gold standard for airway inflammation and its detection.

    Detailed introduction


    The benefits of FeNO test

    • Improved accuracy of diagnosis for patients suspected with asthma.

    • Improved effectiveness of patient care through better understanding of an individual’s condition.

    • Improved patient outcomes, reducing the risk of exacerbations and admissions to hospital.

    • Reduction in inappropriate prescribing, including corticosteroid prescribing.


    Product feature

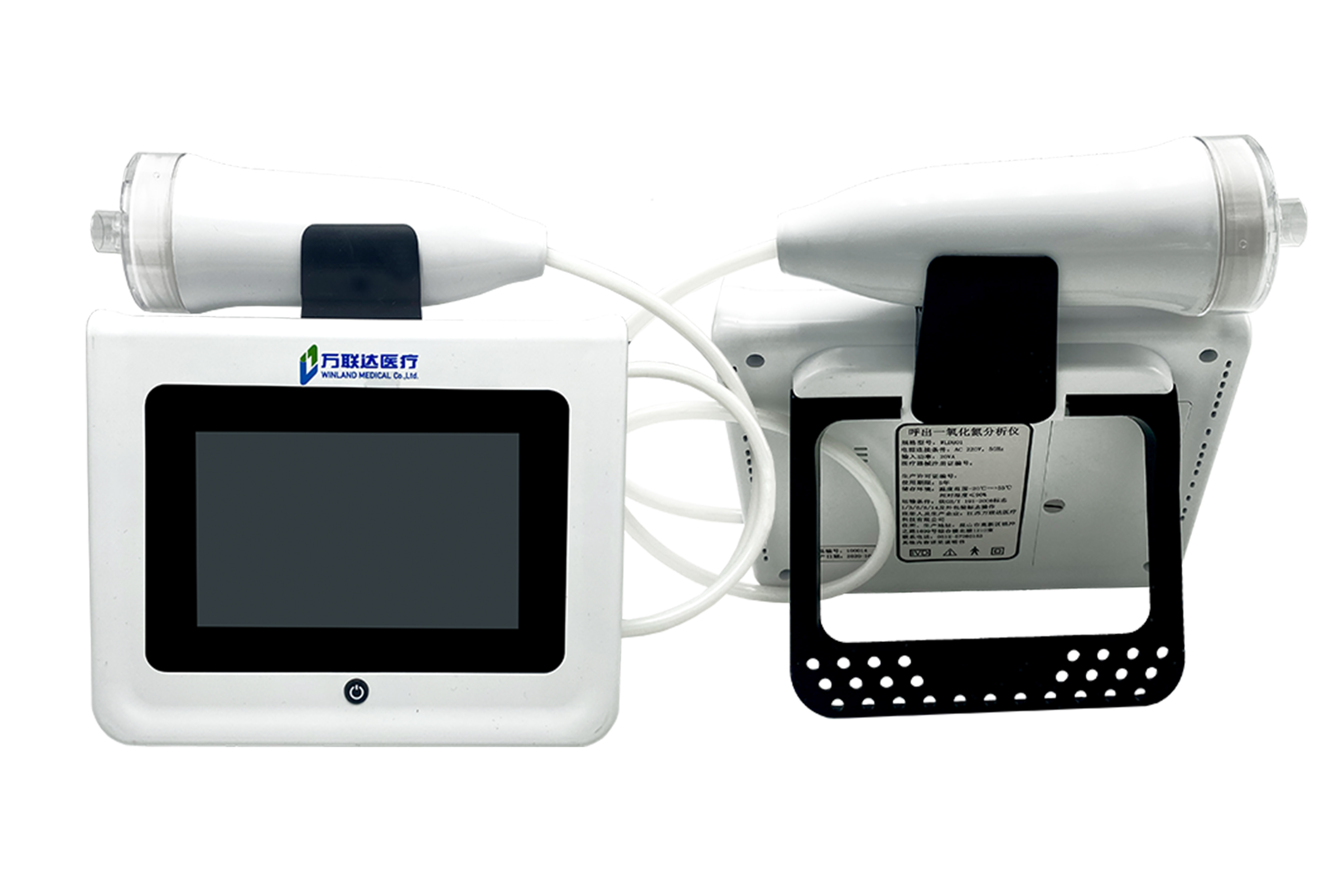

    • Two models: It is suitable for adults/children.

    • Fast measurement: After 10 seconds of blowing, the test results are available within 1 minute.

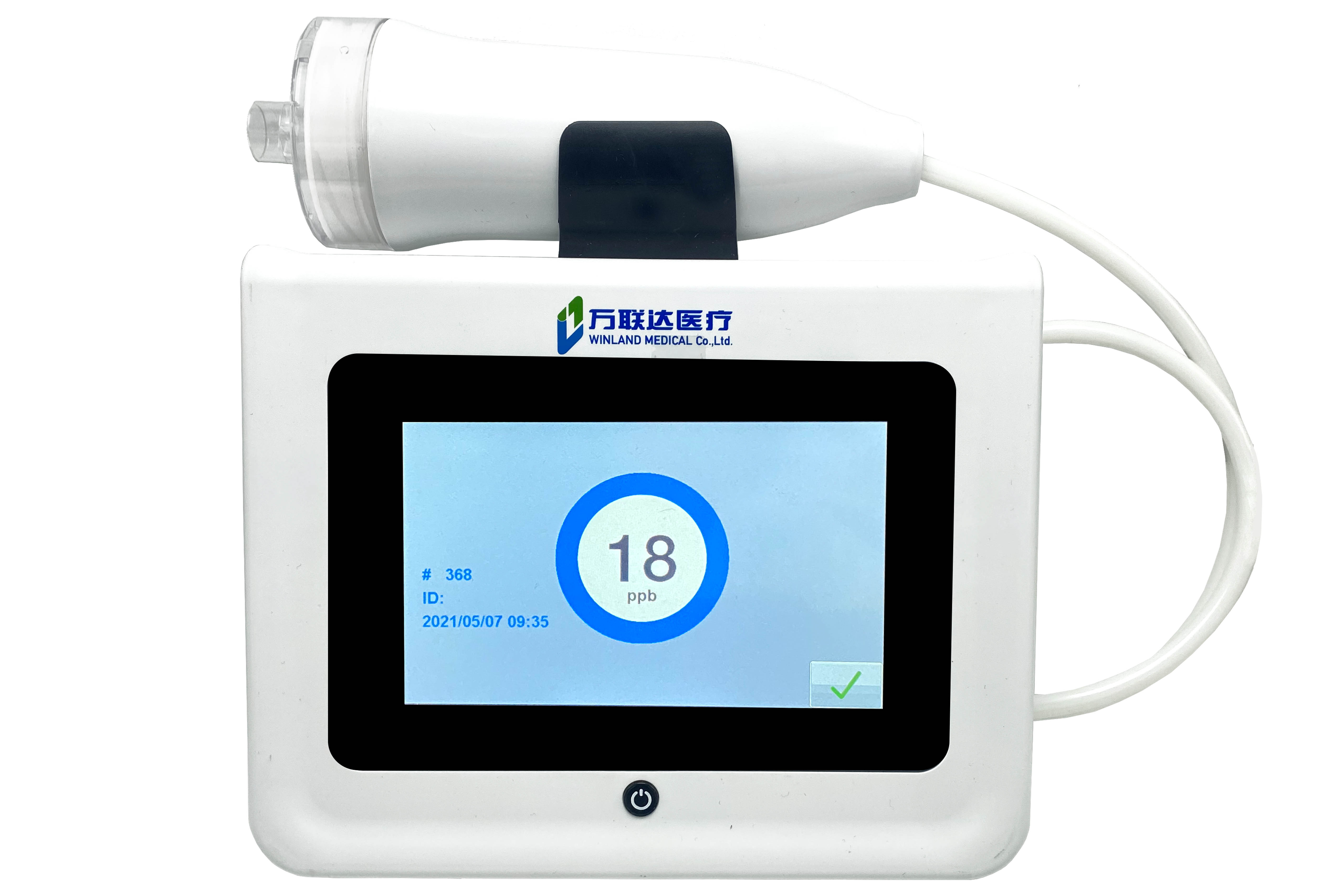

    • Easy to use: Touch screen and visual animation guide, simple and easy to operate.

    • Large storage space: It has a large storage capacity, which allows for easy access to history, statistics, analysis, etc.

    • Imported accessories: Imported gas detectors, solenoid valves, brushless motors and suction pumps are used to make monitoring more effective as well as longer life.

    • No cumbersome maintenance required.


    Specifications

    1. Range ………….…………………………………………..….……………..……………..………5-300ppb

    2. Accuracy…………………………………………………..…..……………±5 ppb / ±10% of reading

    3. Display…………………………………………………….……………..………………..………5 inch LCD

    4. Dimension……….……………………………………………………..…330mm x 450mm x 245mm

    5. Weight (Contain sensor)…….……………………….……………..………………..…………….1.2kg

    6. Power Supply…….………Input: 100-240Va.c., 50/60Hz, 0.5-0.25A; Output: 5Vd.c., 3A



    Operation procedure


    CE Certificate
